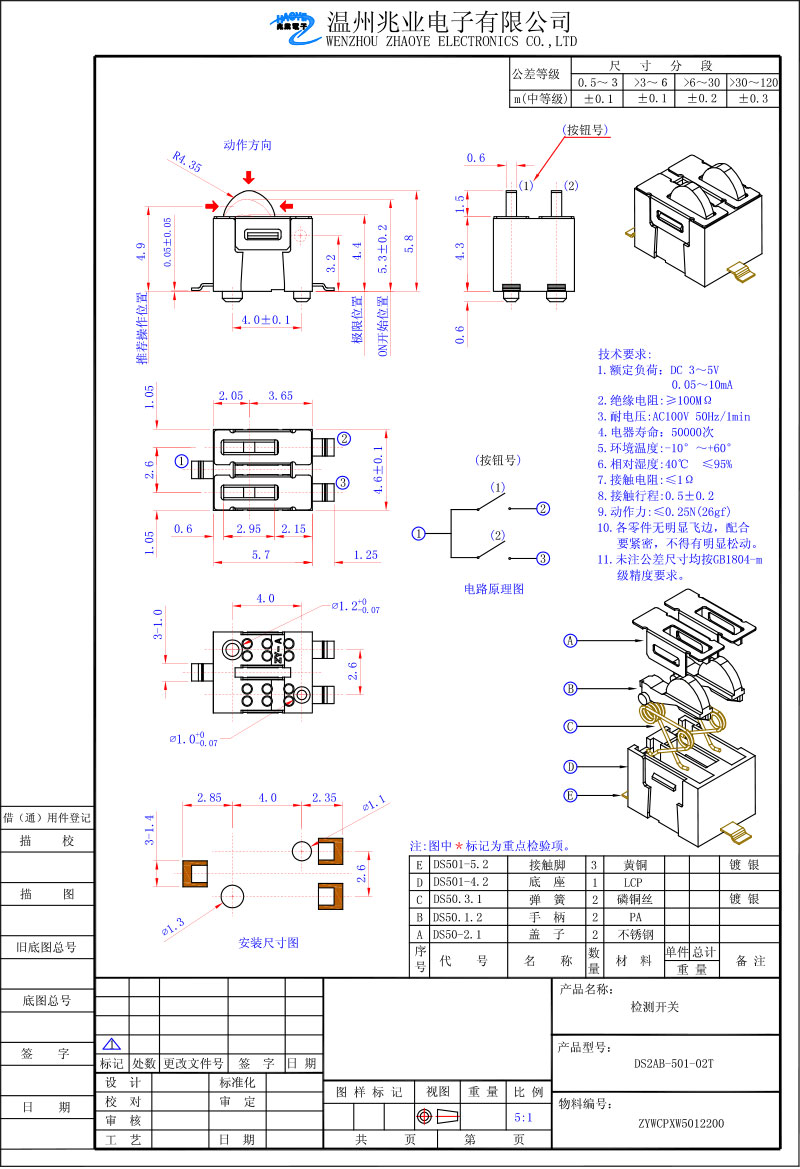

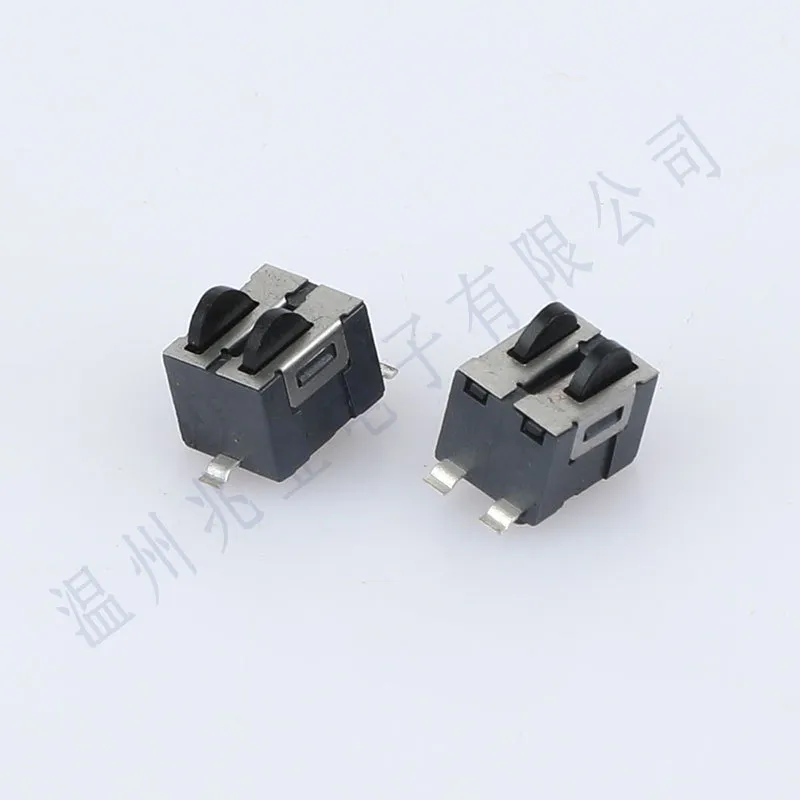

DS2AB-501-02T Detection Switch / Limit Switch Features

◆Small size and light weight

◆It has Hife and more operating forces can be applied such as lightly force

DS2AB-501-02T Detection Switch / Limit Switch Soldering Conditions

◆Hand soldering

Use a soldering iron of 30 watts, Controlled at 350'C approximately 3 seconds while solder applying

Wave soldering/Retlow Soldering

The peak temperature of the wave oven should be set to 260°C max. Condition for soldering Temperature Profile

DS2AB-501-02T Detection Switch / Limit Switch Applications

◆They can operate all types of computer mouse,Mobile phones,cameras,VCR,stereo and car radio equipment and PDAS
